High Peak Carport Kits | 1-¾” ID Steel Metal Brackets | Heavy Duty Tarp TK134

USER MANUAL- with details about required pipe specifications, and step-by-step setup guide will be emailed to you when your order ships if you request for it. All we need to prepare your customized user manual is the dimensions (W x L x Max Height) you need your tent frame to be. We shall continue to provide You with FREE technical support till your project is completed. (send the request at checkout page).
IDEAL FOR - Greenhouse, Deck Canopy, Carport, Shelter, Tent etc.;.
CONSTRUCTION- Heavy Duty, Made with 16 Gauge thick, Corrosion / Rust Proofed Steel.
DESIGNED FOR- 1-11/16" OD Fence poles.

SPECIFICATIONS:

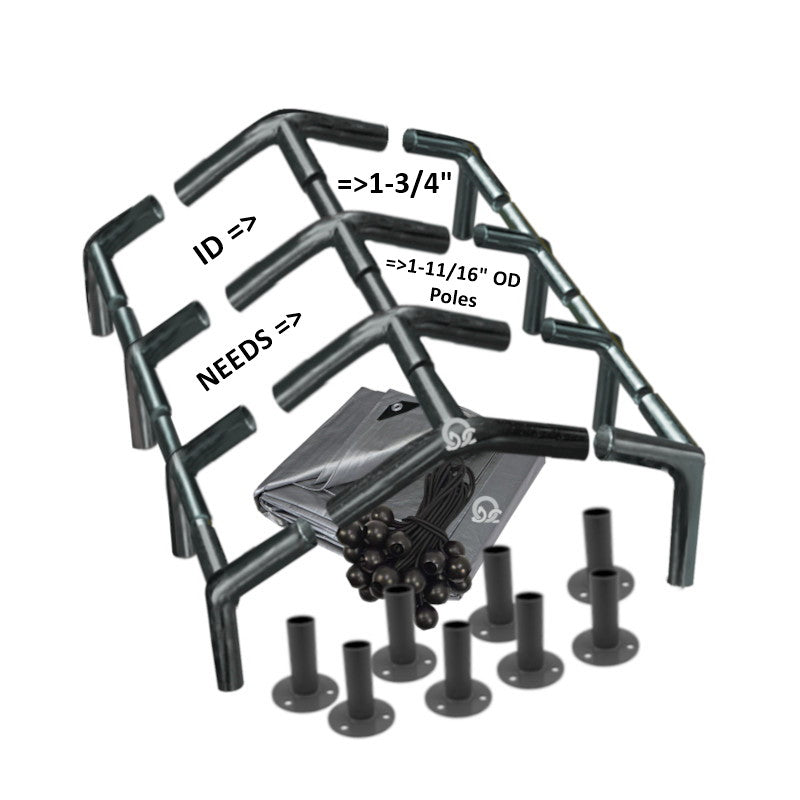

• Fittings Inner Diameter (ID): 1-3/4" , Designed for 1-11/16" outer diameter pipe
• Fittings Outer Diameter (OD): 1-7/8"
• Fittings Leg Length: 4-3/4"

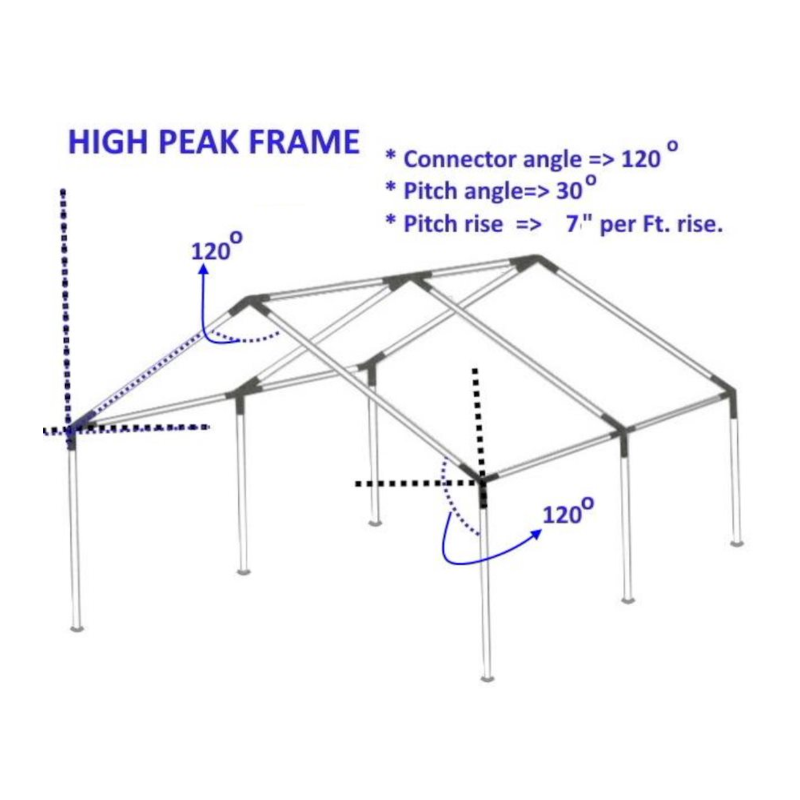

• Fittings Peak Angle: 120º forms high peak frame with 30 degrees pitch angle and 7"/ft pitch rise (7:12)
• Fittings wall thickness: 16 gauge
• Heavy duty matching Tarp included along with required Ball bungee cords.

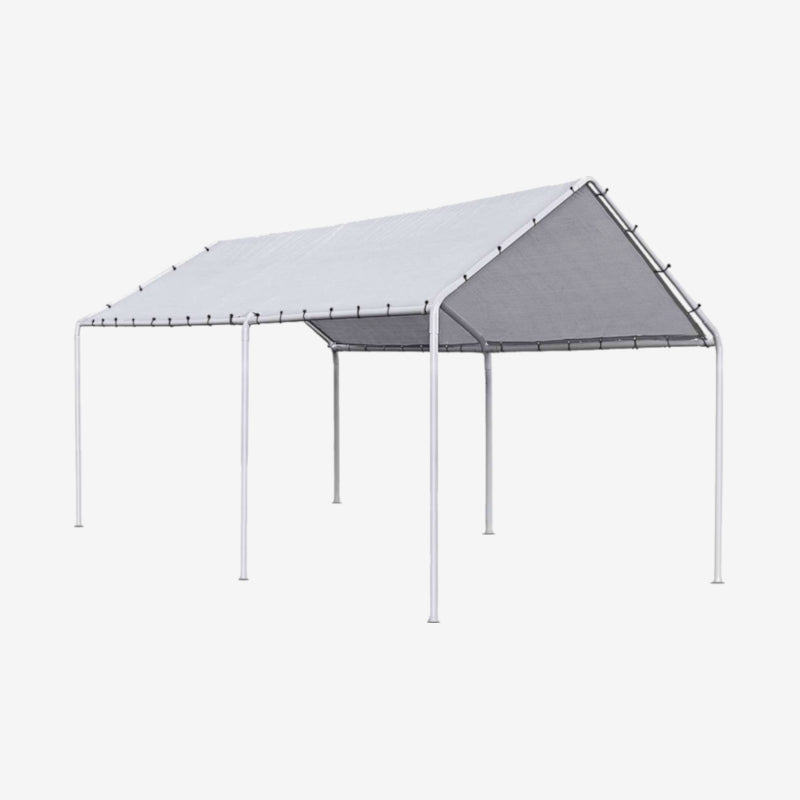

Carport Canopy Kit with Tarp for Large Poles

These High peak Carport Canopy Kits come with Tarp and Ball bungee tie cods, but do not include the poles to form the Roof or Legs of the frame.

The finished project is ideal for vehicle RV or trailer storage, wedding tents, outdoor art shows, picnic, Greenhouse, and flea/farmers' market shade. Temporary seasonal storage and protection from sun, rain and other elements of weather, double carport.

Our high peak kit comes with the accessories required to build a strong  Carport Frame; but does not include the required 1-11/16" fence poles for making the Frame Legs and rest of the roof - you need to buy them separately. They are available at your local hardware store.

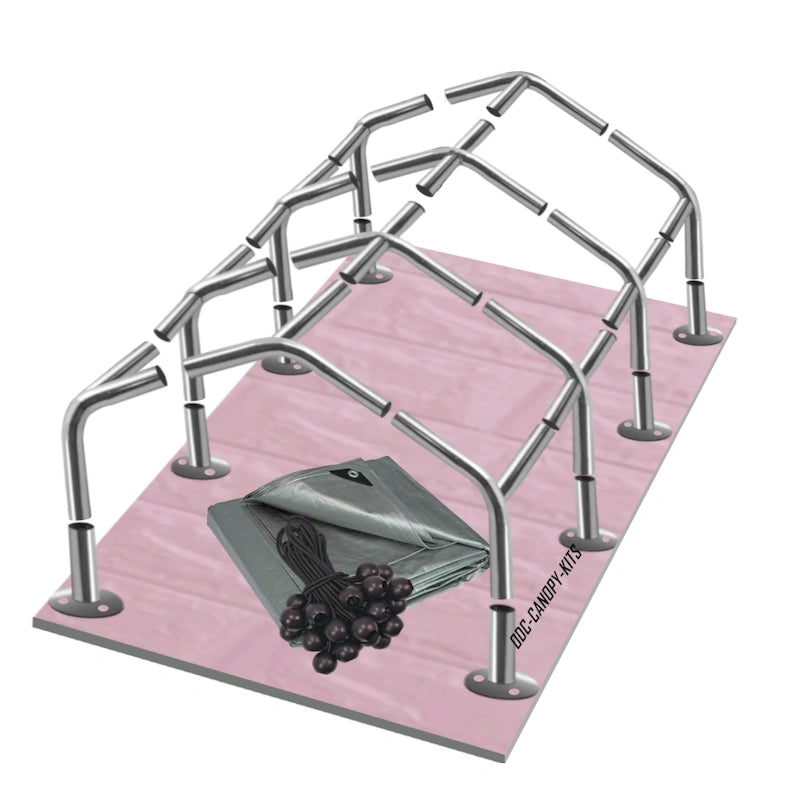

Included in the your Kit :

• 3-way and 4-way metal high peak frame fittings,
•  Required Ball bungee ties and
• A matching  HD 12 mil. Tarp cut to industry standard (Not a Valance Tarp).

Footpads: Optional.

*The high peak 120 degree 3-Way and 4-Way corrosion / rust proofed steel fittings are designed to be assembled with 1-11/16" OD Fence Poles.

*The heavy duty high quality Ball Bungee Cords designed to securely hold Tarps  to the frame  have large plastic ball ends to prevent slipping. Made from high quality elastic with woven cover for durability they help to prevent tarp from tearing (provide some "flex" for wind gusts, absorb sudden jerks and distribute the loading force between the grommets).

*The Matching Tarp is not a Valance tarp. It is a 12 mil heavy duty regular polytarp with the following other features

1. You will find that the accompanying Tarp is 2ft wider than the width of the frame you will use it on; this is normal.
2. Super heavy duty with triple water resistant coating lamination.
3. Grommets  strategically placed to securely anchor the tarp to the canopy frame.
4. Poly roping in hem all around to protect tarp and reinforced corners for extra strength.
5. Not fire retardant - will ignite and burn in contact with an open flame.
6. Water, mildew and UV protected (all weather protection) .

*The Footpads provide extra stability to your carports, tents, shade or garage. They are 16 gauge thickness. With the footpads attached to the legs of your frame you will be protecting your investment from being carried away by heavy wind.

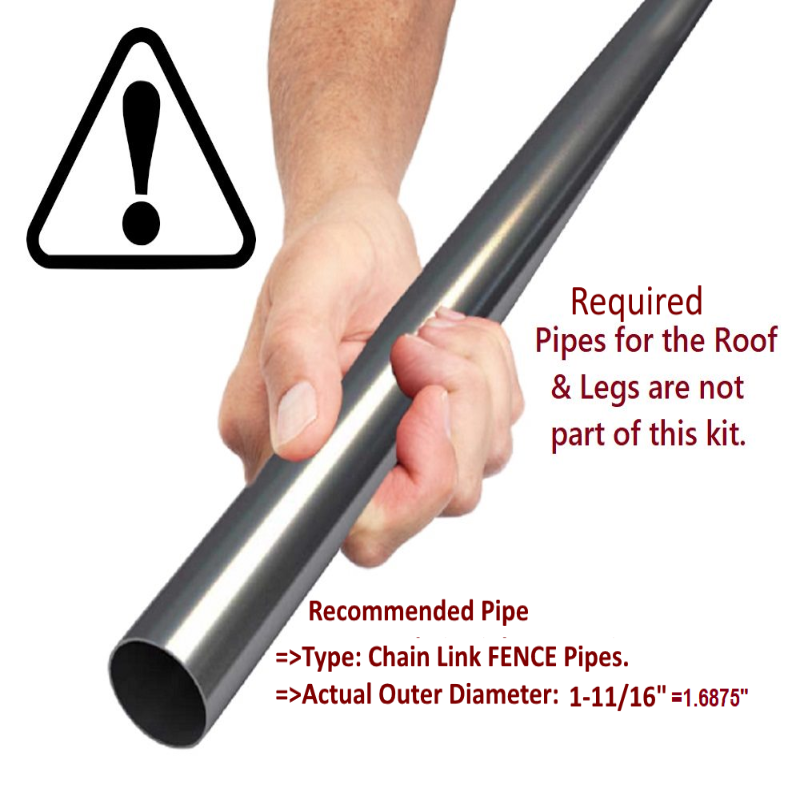

Required Pole type: Chain-link Fence pipe (a.k.a. "the 1-5/8" Chain-link Fence pipe)
Required Pole actual outer diameter: 1-11/16 inc.
Spacing Between Arms: Minimum is 4ft apart and the maximum is 10ft., apart.
Find a pole seller near you: Pole Sellers .

Watch How To Install Tarps - VIDEO

NOTE:

* Height of Carport: Can be any height you want.
* Order handling time: 1-3 business days.
* Expect delivery within: 2-8 business days.

Protect or repair your tarp with this grommet installation tarp repair kit - Learn More
