Canopy Fittings Kit High Peak 1-3/4" ID #HPC134

Canopy Fittings Kit High Peak 1-3/4" ID #HPC134

Regular price $108.00 USD
Regular price Sale price $108.00 USD
Sale Sold out
Shipping calculated at checkout.
Frame Style Options
Footpad Options

Canopy Fittings Kit

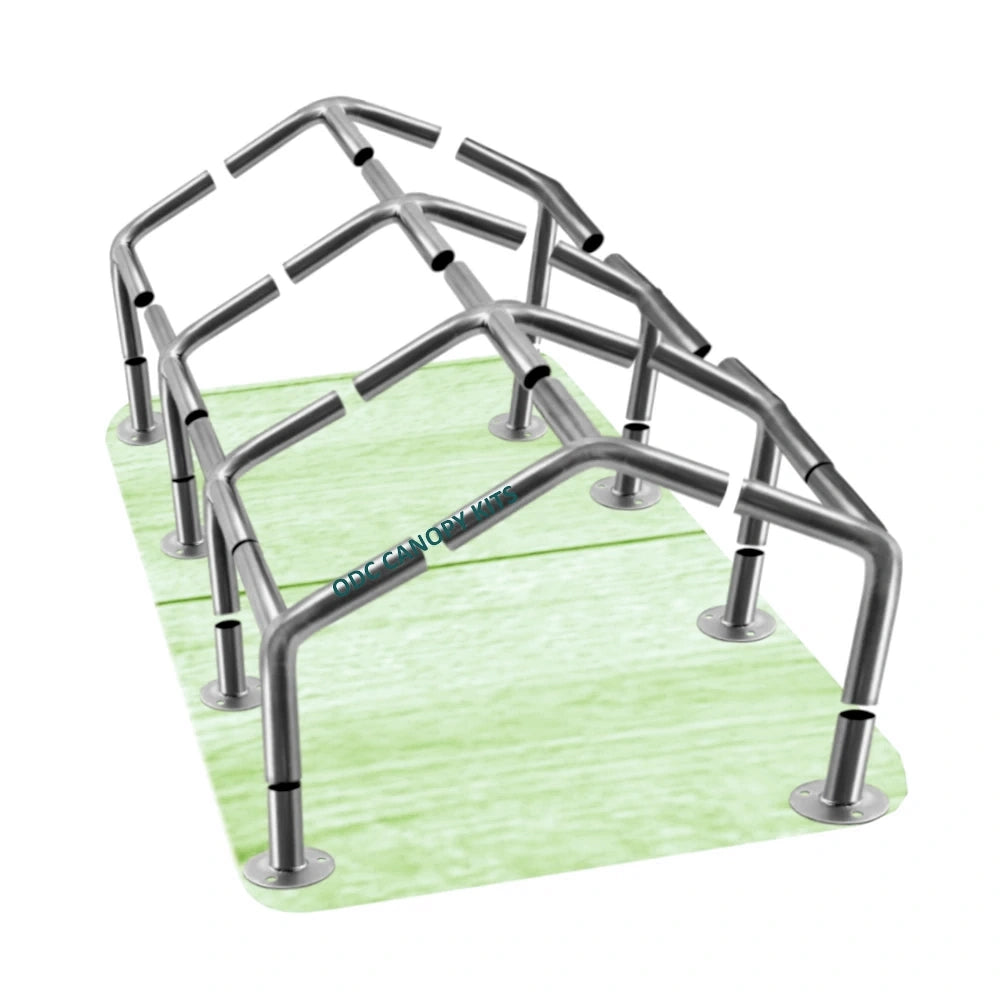

 They use larger poles and are designed to let you easily and quickly assemble a commercial grade carport, canopy and greenhouse frame that will last a lifetime.

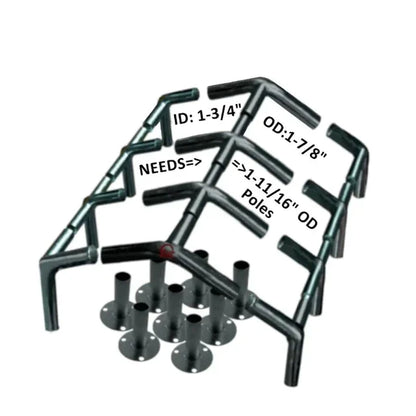

Inner Diameter: 1-3/4"

Outer Diameter: 1-7/8"

Ideal For:

  • Building a Carport, Tent, Greenhouse or Flea-Market Shade.
  • Replacement / Repair of worn-out Tent / Carport Frame fittings.
  • Carport to be used with metal or polycarbonate roofing sheet.

Read the nitty gritty below....

View full details

Let's get into the nitty gritty details.

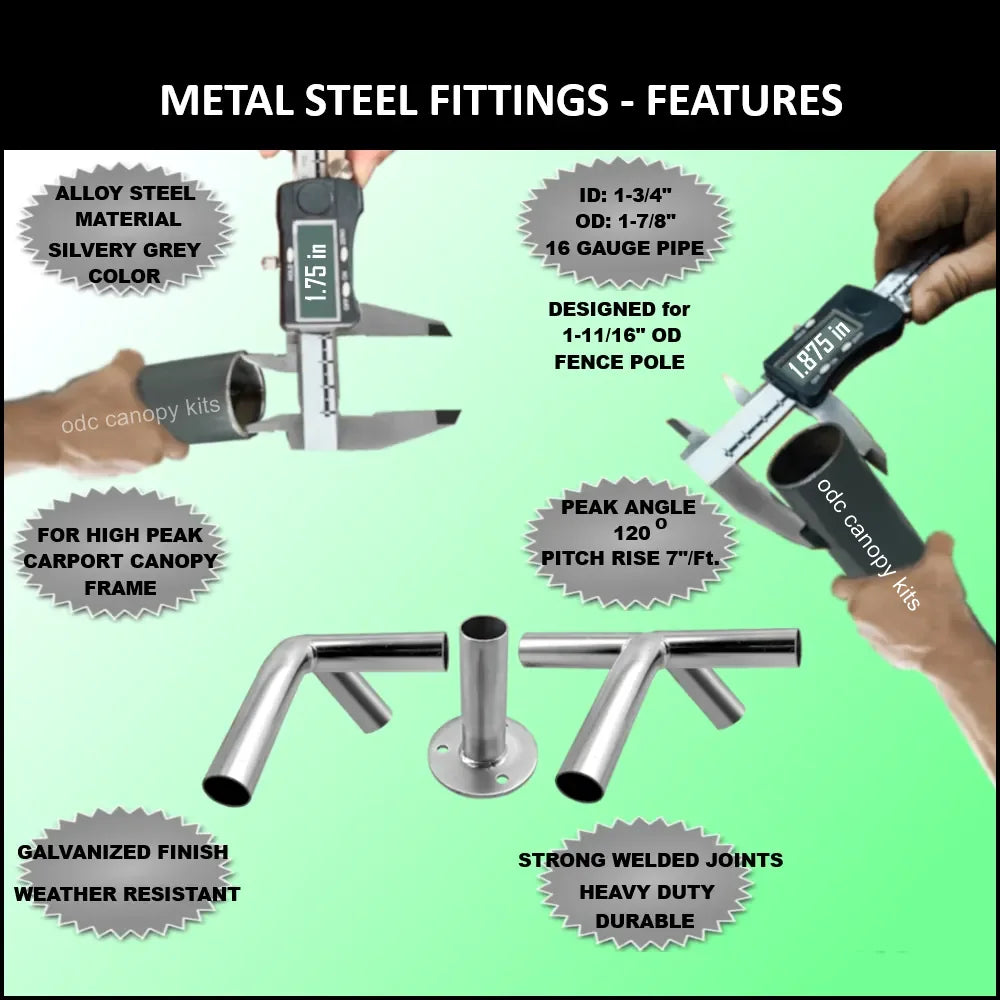

Highlights

  • Various sizes to choose from
  • Made from steel
  • Wall thickness: 16 Gauge
  • Corrosion / Rust Proofed
  • Helps assembling canopy frames of high peak model, with connector angle of 120 degrees, frame pitch angle of 30 degrees and frame  pitch rise of 7"/ foot.

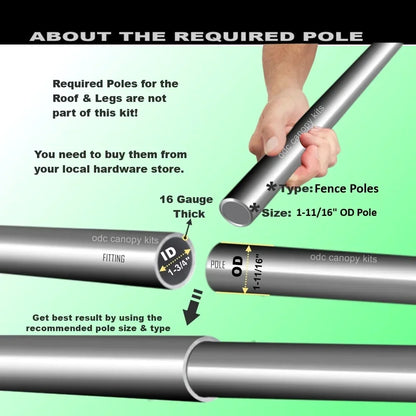

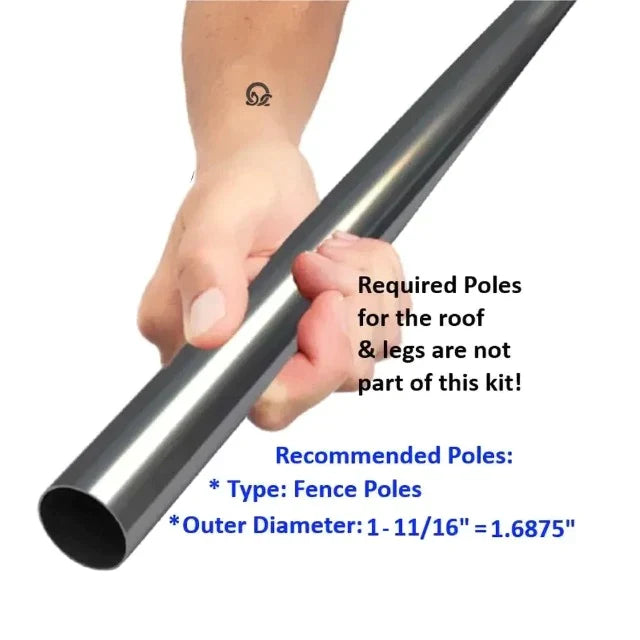

  • These fittings all have an inner diameter (ID) of 1-3/4"; they're designed to fit fence poles with outer diameter  of 1-11/16".
  • These fittings come with Footpads but not with the poles to form the leg and roof poles.
  • There is also an option to buy the carport canopy kit without the footpads.

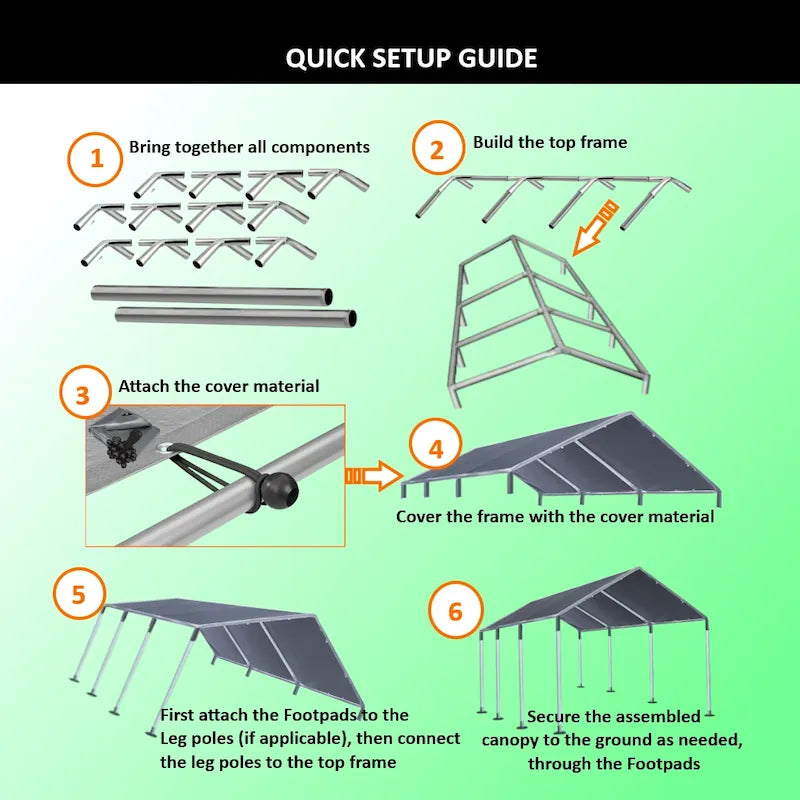

  • USER MANUAL- with details about required pipe specifications, and step-by-step setup guide will be emailed to you when your order ships if you request for it. All we need to prepare your customized user manual is the dimensions (W x L x Max Height) you need your tent frame to be. We shall continue to provide You with FREE technical support till your project is completed. (send the request at checkout page).

Details

NOTE

  1. If buying for a previously owned system, make sure you measure the outer diameter for your existing pole to ensure they will fit our fittings.
  2. Maximum entrance width is 30ft Wide.
  3. Peak Height: up to 20ft.
  4. If you are not sure if this kit will build what you have in mind contact us with the W x L x H (ft.) and we shall figure it out for you, and would provide support till your project is completed.
  5. Order handling time: 1-3 business days.  Expect delivery within: 2-8 business days within continental USA.

Recommendations

Ideal For:

  • Building a Carport, Tent, Greenhouse or Flea-Market Shade.
  • Replacement / Repair of worn-out Tent / Carport Frame fittings.
  • Carport to be used with metal or polycarbonate roofing sheet.

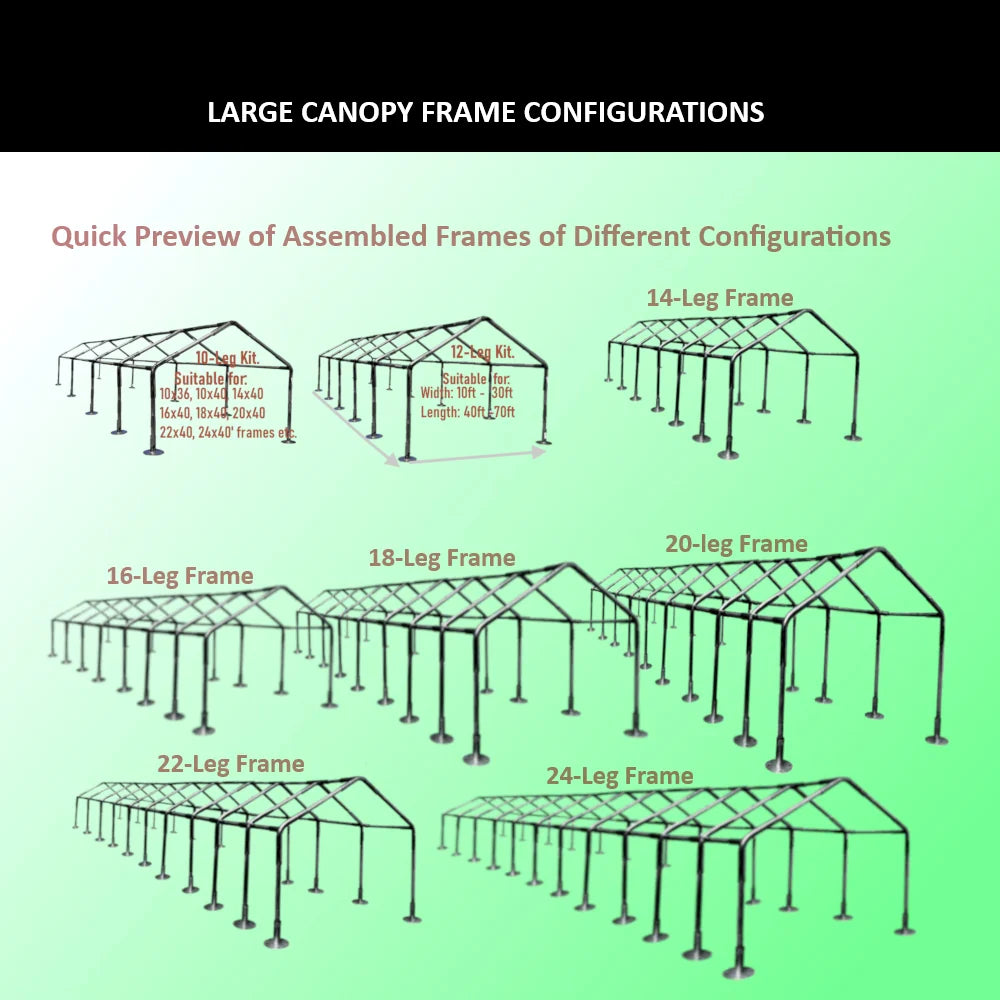

Style & suggested use:

  • 4-Leg Style is suitable for 6-to-10' (W) x 10' (L) frame
  • 6-Leg Style is suitable for 10-to-18' (W) x 12-to-20' (L) frames
  • 8-Leg Style is suitable for 10-to-18' (W) x 24-to-30' (L) frames
  • 10-Leg Style is suitable for 10-to-20' (W) x 24-to-40' (L) frames
  • 12-Leg Style is suitable for 10-to30' (W) x 32-to-50' (L) frames.
  • 14-to-18-Leg Style is suitable for 10-to-30' (W) x 24-to-60 (L) frames
  • 20-to-24-Leg Style is suitable for *10-to-30' (W) x 30-to-70' (L) frames.
