Slant Roof Canopy Kit | 12-to-20Leg Frame DIY Carport, Greenhouse & Shelter Fittings

1 reviews

$210.89 USD

Shipping calculated at checkout.

Frame Style 12-Leg frame (up to 50 ft) 14-Leg frame (up to 60 ft) 16-Leg frame (up to 70 ft) 18-Leg frame (up to 80 ft) 20-Leg frame (up to 90 ft)

Frame with Footpads Yes No

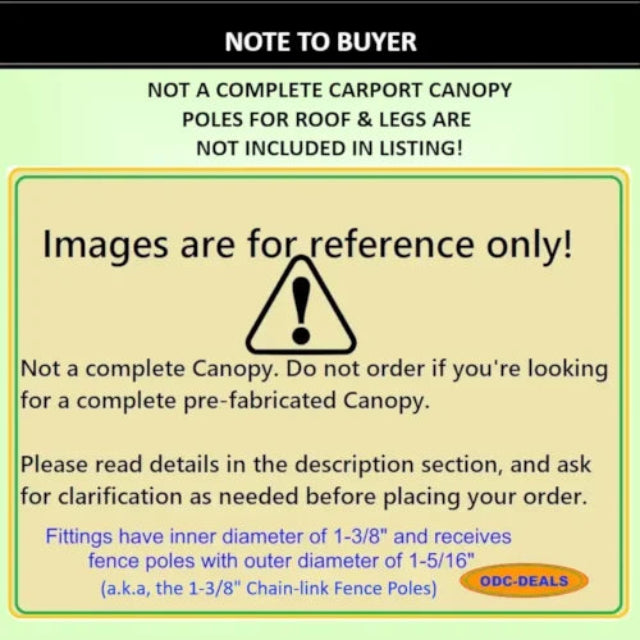

Build a commercial-grade slant roof frame for a carport, greenhouse, deck shelter, or RV cover using ODC's heavy-duty steel canopy kits. Pipes/poles are not included — kits contain the steel bracket connectors only.

Ships from the USA. USA delivery only.

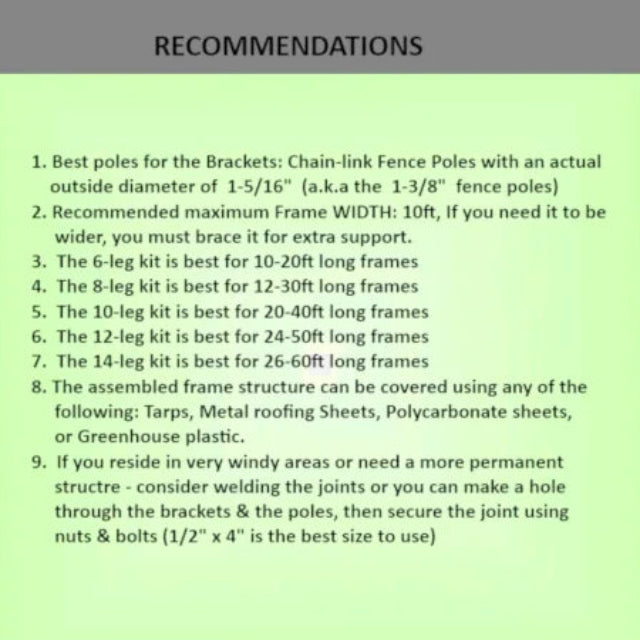

🔧 What Kit Do I Need?

Kit Size	Max Width	Max Length	Best For
12-Leg Kit	6–10 ft	Up to 50 ft	Small carport, garden greenhouse
14-Leg Kit	6–10 ft	Up to 60 ft	Medium carport, extended greenhouse
16-Leg Kit	6–10 ft	Up to 70 ft	Large carport, RV shelter
18-Leg Kit	6–10 ft	Up to 80 ft	Commercial shelter, large deck cover
20-Leg Kit	6–10 ft	Up to 90 ft	Extra-large commercial frame

Tip: Need wider than 10 ft? Add bracing. Spacing between fittings along the length: 4–10 ft apart.

✅ Key Benefits

Corrosion & rust-proof steel — built to last outdoors year-round
16-gauge heavy-duty steel — engineered to handle snow load
Fits 1-5/16" OD chain-link fence pipe (sold separately)
Lock screws + reinforcement bar included
6 to 20-leg configurations — build any size frame you need
Weld or bolt assembly — flexible construction method
Free technical support until your project is complete

DIY Slant Roof Canopy Kit – Corrosion-Resistant Steel Frame Fittings

📐 Required Poles

Type: Chain-link fence pipe (equal diameter at both ends)
Outer Diameter: 1-5/16 inch (OD)
Bracket OD: 1-1/2" | Bracket ID: 1-3/8" | Leg Length: 5" | Gauge: 16

Find a pole seller near you →

📦 What's Included

Steel frame connector brackets (quantity based on kit size selected)
Lock screws
Reinforcement bars
Poles/pipes NOT included

📋 User Manual & Support

A customized setup guide with pipe specs and step-by-step instructions will be emailed when your order ships. To receive it, include your desired frame dimensions (W × L × Max Height) at checkout. Free technical support is provided for the life of your project.
