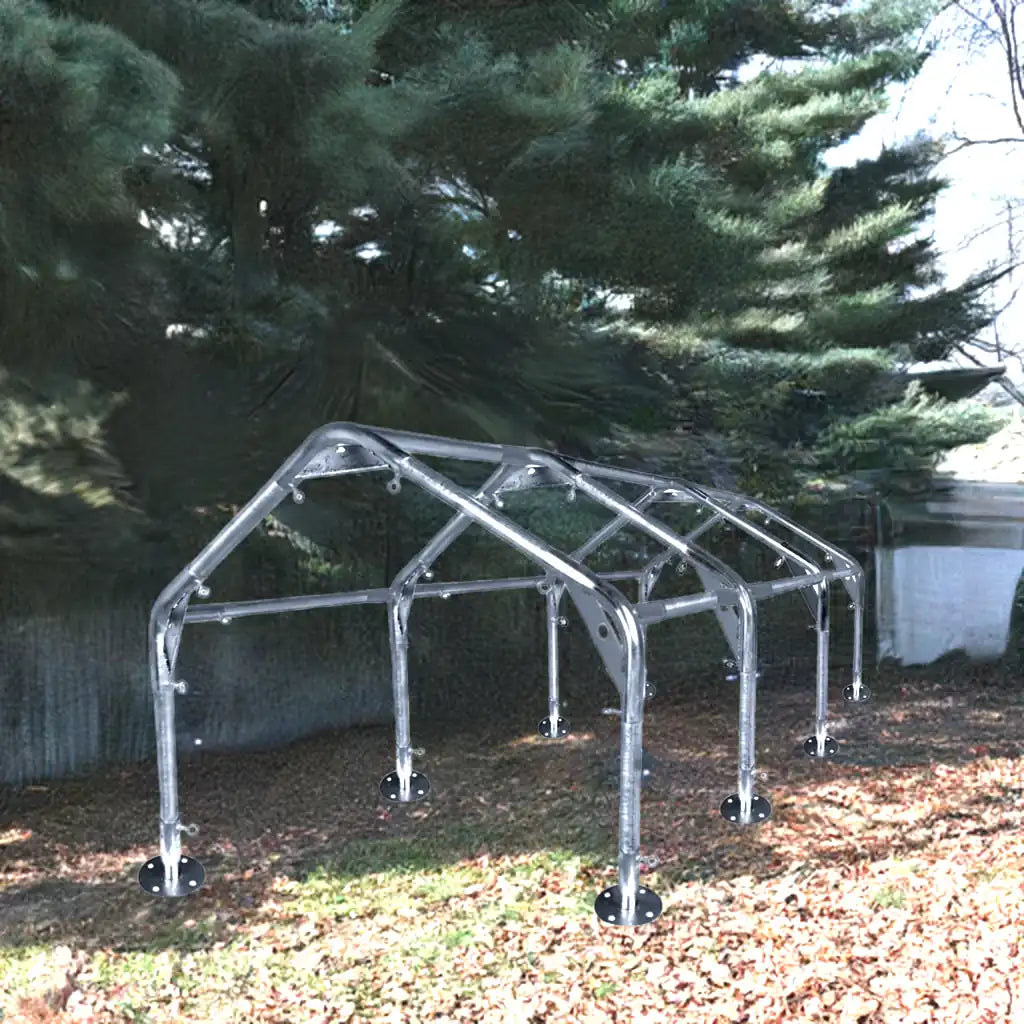

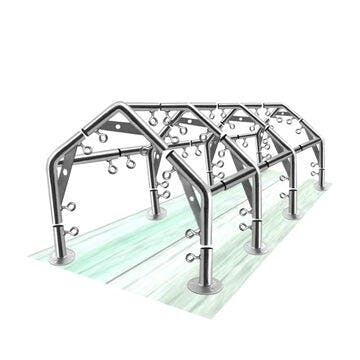

High Gable Carport Canopy Kit 1-3/8" ID: Reinforced Steel Frame Connectors with Eye-Bolts #RHG138

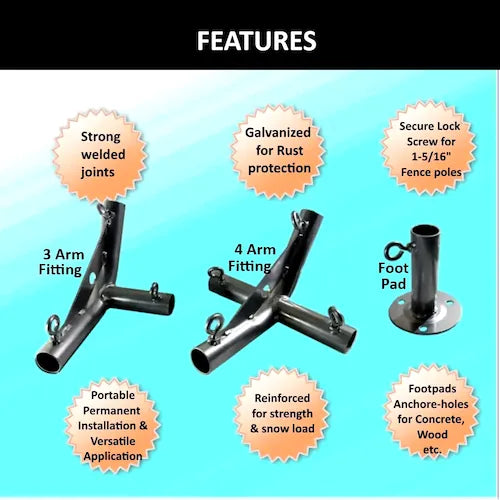

FEATURES:

• Fitting: Made from Steel with reinforcement bar, Lock Screws and Galvanized for Rust Proofing.
• Ideal  For: Building Greenhouse, Carports, Gazebo, Pergola, RV Shelter metals frames.

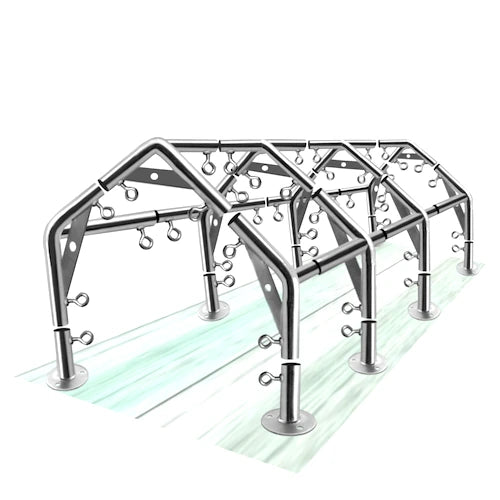

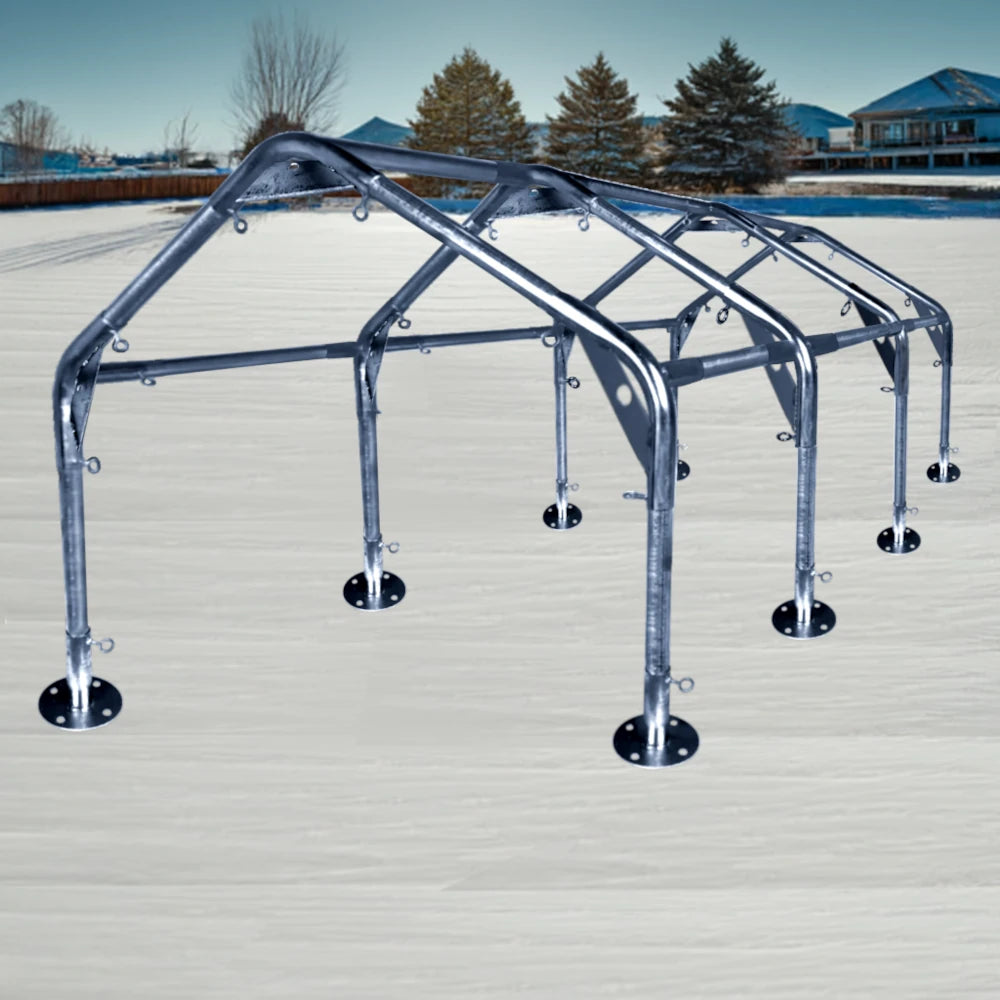

• Versatility: Allows you to build 6, 8, 10, 12, 14, or 16-Leg stout frame of any dimension.
• User Guide: with details about required pipe specifications, and step-by-step setup guide will be emailed to you when your order ships if you request for it. All we need to prepare your customized user manual is the dimensions (W x L x Max Heigth) you need your tent frame to be. We shall continue to provide You with FREE technical support till your project is completed. (send the request at checkout page).

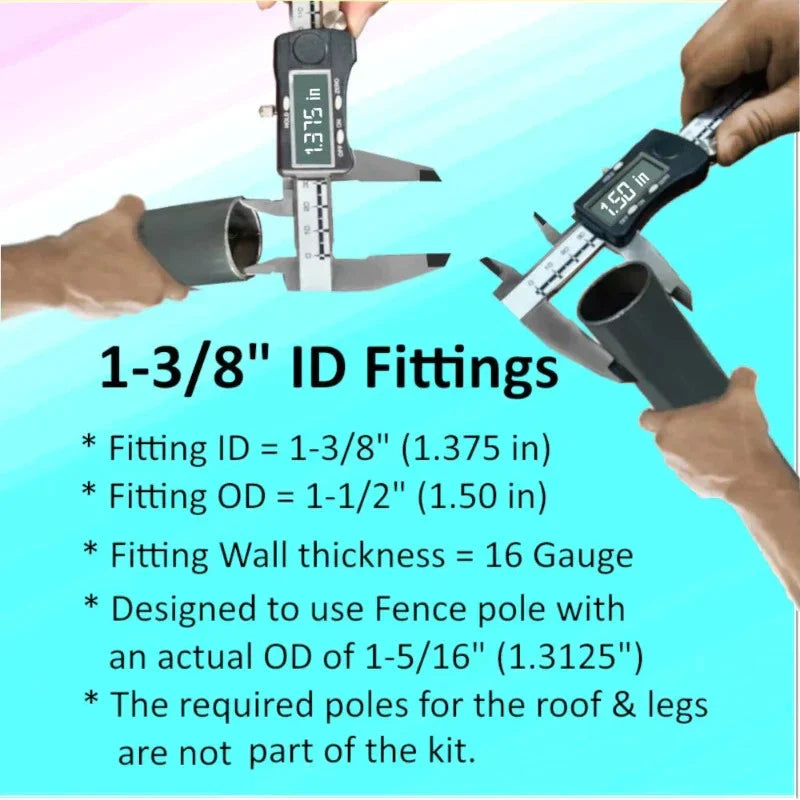

Fitting Specifications:

• Inner diameter (ID) 1-3/8"
• Inner Arm of fitting to receive only 3" of the Fence pole.
• Needs 1-5/16" OD Fence poles
• Wall thickness = 16 gauge

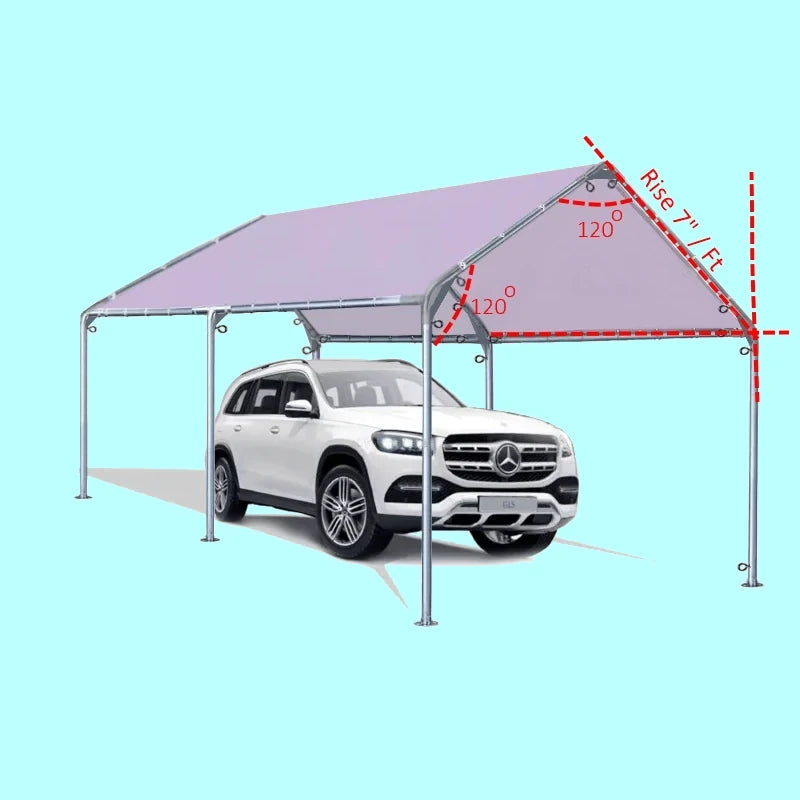

• Peak Angle = 120°
• Pitch Angle = 7" /Linear Ft.
• Rust Protection = Galvanized.
• Footpad base holes = 1cm (~0.39") wide

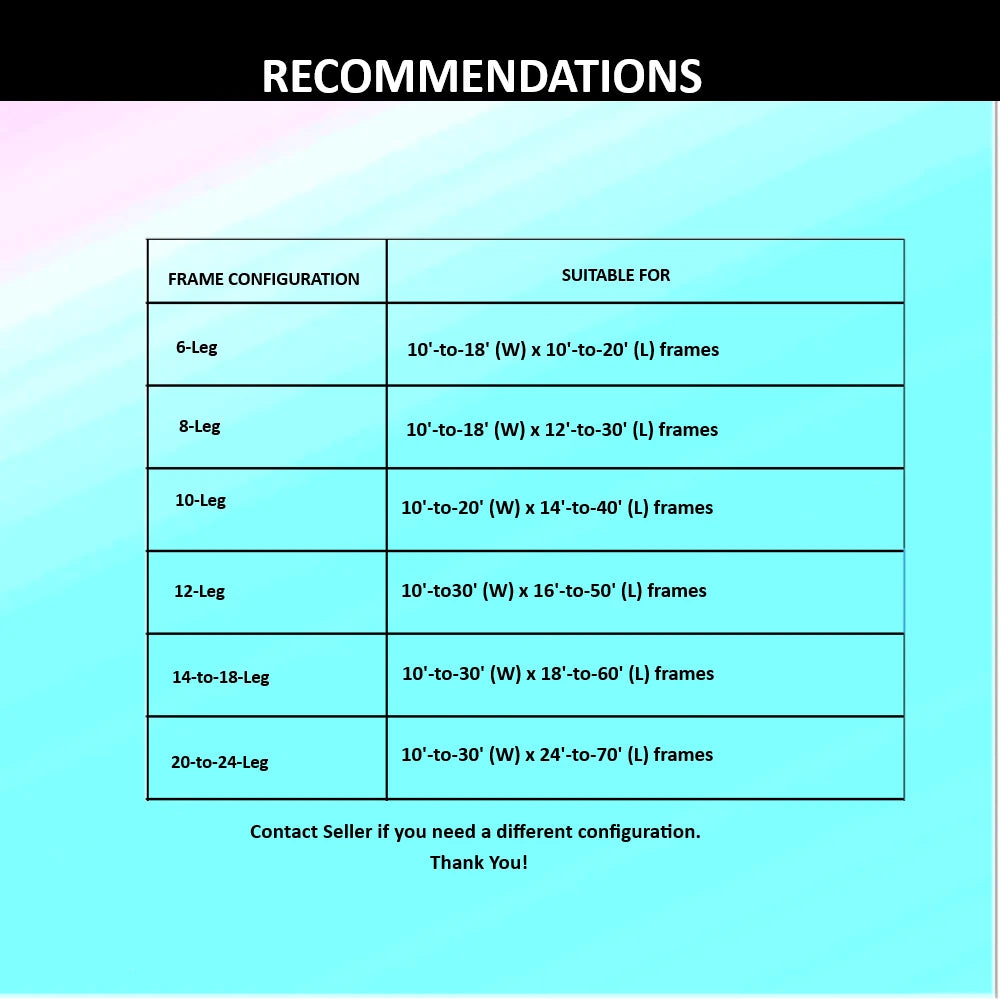

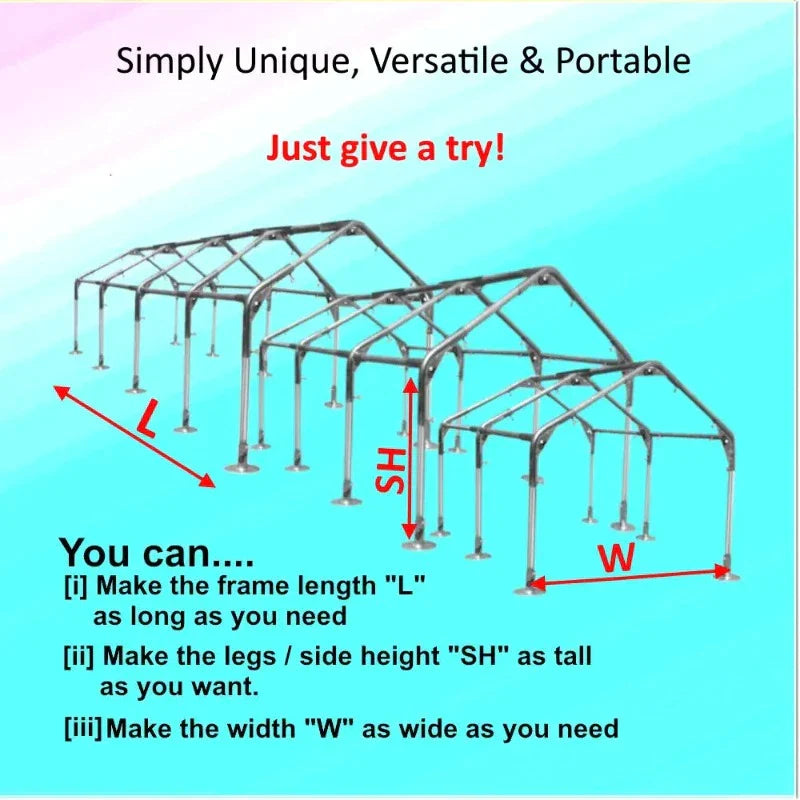

Style Details:
*4-Leg Kit: best for 6-to-10' (W) x Max 10' (L) frame
*6-Leg Kit: best for 8-to-20' (W) x Max 20' (L) frames
*8-Leg Kit: best for 8-to-20' (W) x Max 30' (L) frames
*10-Leg Kit: best for 8-to-20' (W) x Max 40' (L) frames
*12-Leg Kit: best for10-to30' (W) x Max 50' (L) frames
*14-Leg Kit: best for 12-to-30' (W) x Max 60' (L) frames

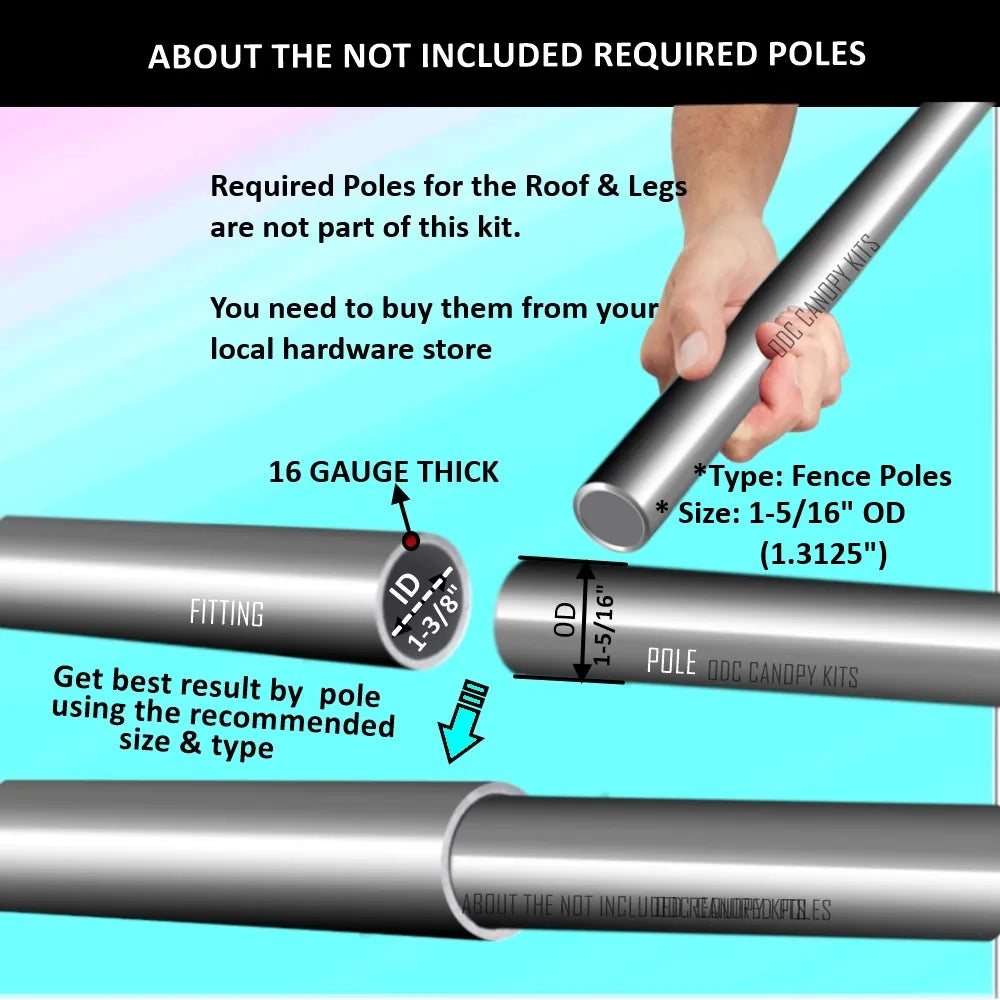

Required Pole type: Chain-link Fence pipe (a.k.a. "the 1-3/8" Chain-link Fence pipe)
Required Pole actual outer diameter: 1-5/16 inch.
Spacing Between Arms: Minimum is 4ft apart and the maximum is 10ft., apart.
Find a pole seller near you: Pole Sellers in USA
