ODC Low Peak Canopy Kits with Tarp Cover Less Poles.

These are canopy kits with a tarp; available in a variety of sizes and  typical includes a set of frame connectors (brackets), a tarpaulin or tarp and ball bungee tie cords. They are designed to provide temporary shelter or shade in outdoor settings. These kits can be used for a variety of purposes, such as for camping, outdoor events, or even as a carport.

Designed to withstand snow load. These Fittings are constructed from Corrosion / Rust Proofed Steel Fittings.

• They are fabricated using commercial grade 16 gauge steel - which means they will last a lifetime with proper usage.
• They are designed to be used on 1-5/16 inch OD fence poles  (a.k.a. the 1-3/8" fence poles) for durability and design stability. The poles go inside the fittings
• The Fence poles required to form the legs and the roof link pipes are not included in sale. It is more economical to get them from your local hardware dealer than from online source (primarily due to associated cost of shipping).
• With this kit you will be building a commercial grade frame that is portable, versatile, durable and heavy duty.

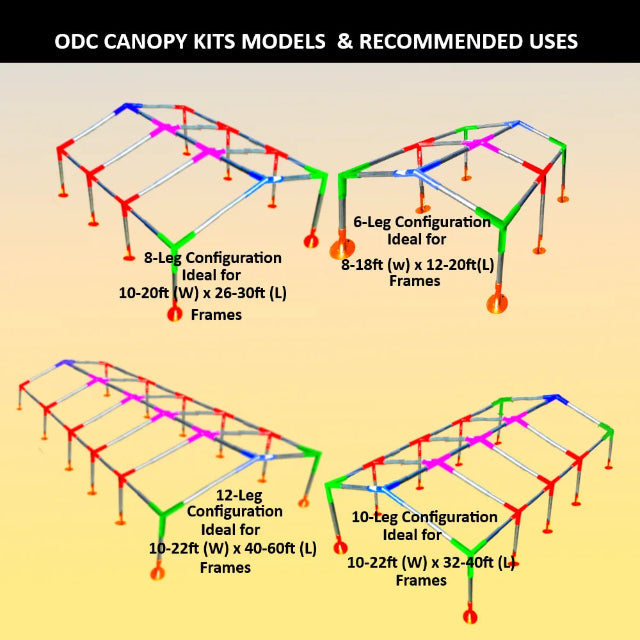

• This Kit is Ideal for Low Peak Canopy, Carport, Event Tent, Greenhouse, Gazebo, Shelter, etc.
• With this kit you can build shelter of the any size you desire.
• You can Weld the parts or use Bolt to hold them together if you wish to build a fixed structure. If you plan to dismantle frequently we recommend you not bolt or weld; because the fitting hold very snugly to the pipes as long as you use the right pipes.

Features

USER MANUAL- with details about required pipe specifications, and step-by-step setup guide will be emailed to you when your order ships if you request for it. All we need to prepare your customized user manual is the dimensions (W x L x Max Height) you need your tent frame to be. We shall continue to provide You with FREE technical support till your project is completed. (send the request at checkout page).

• IDEAL FOR - Greenhouse, Deck Canopy, Carport, Shelter, Tent, Shed, Pool Cover.
• CONSTRUCTION- The brackets are made from Heavy Duty 16 Gauge Corrosion / Rust Proofed Steel.
• DESIGN- Fittings have ID of 1-3/8", works with 1-5/16" OD Fence Poles (not included in sale).
• SPECIFICATIONS (Fittings): * Inner Diameter (ID): 1-3/8", Designed for 1-5/16" outer diameter pipe. * Outer Diameter (OD): 1-1/2" * Leg Length: 5" * Peak Angle: 120º * Thickness: 16 gauge.

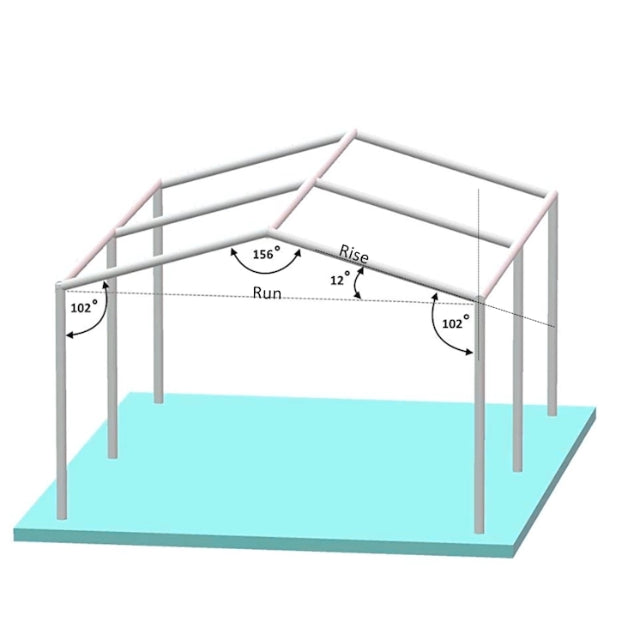

• STYLE: The Fittings will form for a low peak tent frame with pitch angle of 12 degrees and a pitch rise of ~ 2.55"/ foot.
• TOP COVER: 12ml Heavy duty tarp with required ball bungees included.

For tarp selection and longevity, see Best Carport Canopy Roof Material.

✅ Recommended Reading

• Tips for Choosing Pipe Fittings
• How to Maximize Carport Canopy Stability in High Winds.
• Required Pole type: Chain-link Fence pipe (a.k.a. "the 1-3/8" Chain-link Fence pipe)
• Required Pole actual outer diameter: 1-5/16 inch.
• Spacing Between Arms: Minimum is 4ft apart and the maximum is 10ft., apart.
• Find a pole seller near you: Pole Sellers
• Watch How To Install Tarps - VIDEO
• Protect or repair your tarp with this grommet installation tarp repair kit - Learn More
