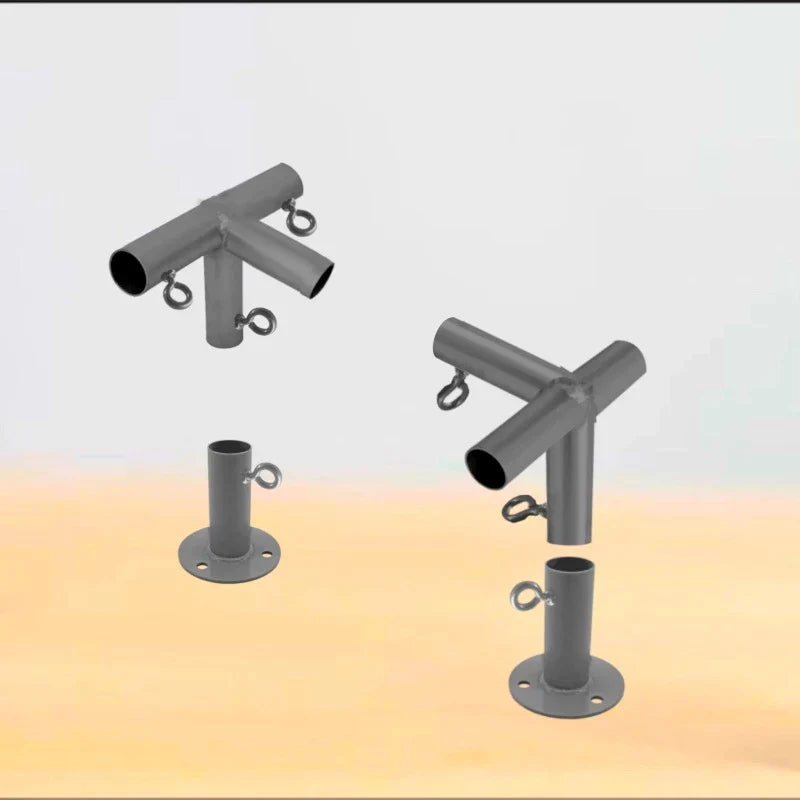

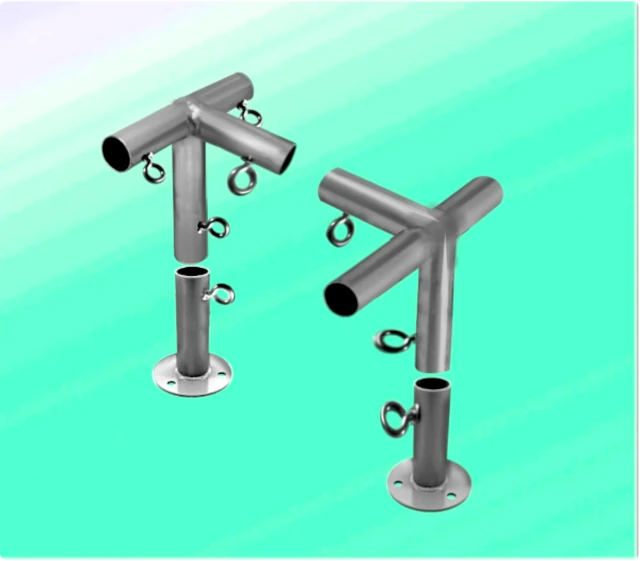

Roof Support Hardware for Slant Roof Canopy Tents

• Corrosion / Rust Proofed Steel
• Made with Steel for strength and durability
• Designed for use with 1-5/16" outer diameter pipe
• Outer Diameter (OD): 1-1/2"
• Inner Diameter (ID): 1-3/8"
• Leg Length: 4-3/8"
• Thickness: 16 gauge.
• The Footpad has a shaft with ID of 1-3/8" and a base diameter of 4-1/4 inch, while the 3 anchor holes on the base have 1cm in diameter.

The Set of Fittings is designed for anyone wishing to add an extra roof support to a compatible Slant Roof Carport Canopy Frame'
Needs 1-5/16" Fence Poles.
The pack will contain the brackets and matching footpads.

IDEAL FOR EXTENDING:
*Greenhouse
*Outdoor Canopy
*Carport canopy
*Gazebo
*Pergola
*Plant Support Structure
*Cold Frame
